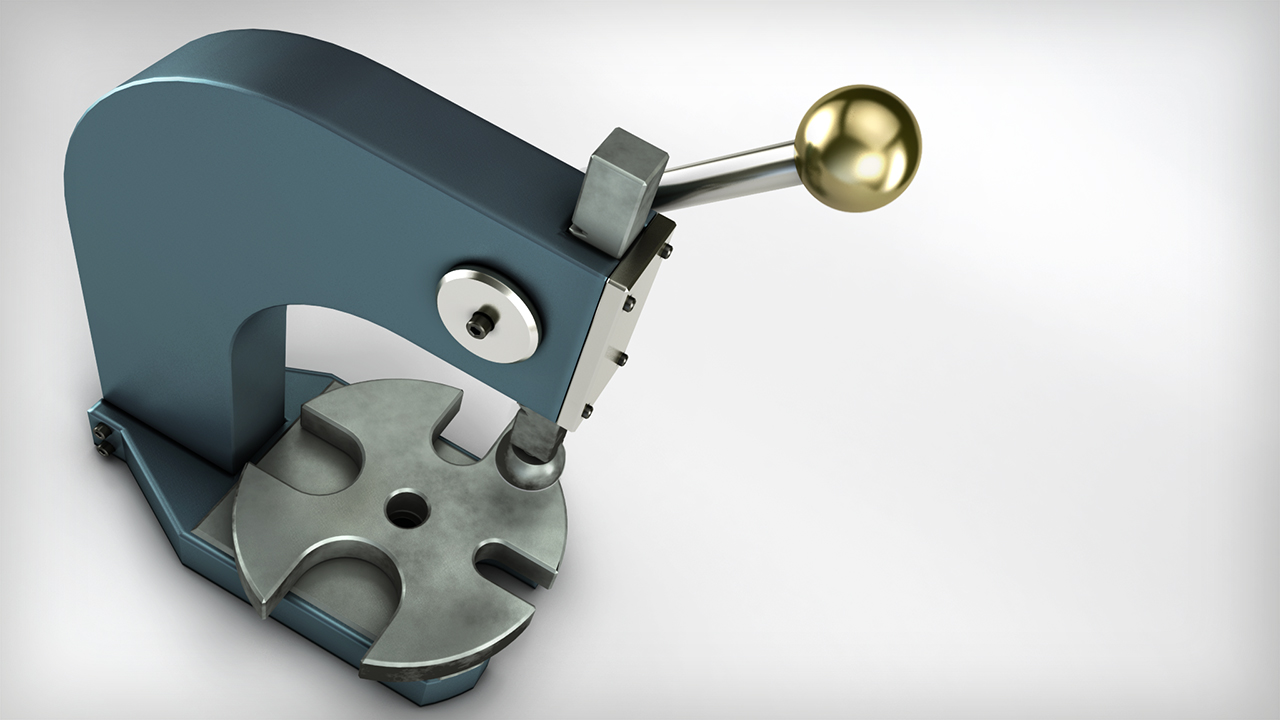

Creating a Working Arbor Press in SolidWorks
Throughout these lessons, we will learn how to use some of the basic to intermediate sketch and feature tools that are available in SolidWorks. Software required: SolidWorks 2014.
What you'll learn
Throughout these lessons, we will learn how to use some of the basic to intermediate sketch and feature tools that are available in SolidWorks. Moving beyond the standard features, we'll learn how to use the tool library, where standard fasteners and power transmission components may be found. We'll also bring together the finished parts to form a working assembly. By the end of this training, we will have learned to work with the standard mates, along with the use of limit and gear mates in SolidWorks. Software required: SolidWorks 2014.
Table of contents
- Operating SolidWorks 2014 3m
- Using the Provided Drawings 2m
- Beginning a New Part 11m
- Applying Material Properties 4m
- Utilizing Sketch and Feature Tools 8m
- Using the Revolved Boss Tool 7m
- Dimensioning Our Sketch 8m
- Implementing the Line Tool 8m
- Creating the Handle Shaft 8m
- Generating Reference Planes 7m
- Administering the Hole Wizard 6m
- Speeding up Our Techniques 9m
- Producing Symmetry in a Part 7m
- Diving Deeper into the Hole Wizard 7m
- Revisiting Standard Tools 9m
- Using the SolidWorks Toolbox 8m
- Unlinking Toolbox Parts 6m
- Creating Fasteners 4m
- Configuring a Gear 7m
- Designing the Gear Rack 11m
- Beginning an Assembly 9m
- Inserting Open Components 5m
- Utilizing the Files Explorer 8m
- Solving Common Issues 6m
- Inserting the Gear Rack 10m
- Applying the Limit Mate 6m
- Copying Components in an Assembly 4m
- Making Edits in an Assembly 7m
About the author
Dave has been both teaching and working with design software for the past 25 years. A machinist by trade, he has learned design software from the end user’s point of view. Working with solid modeling software for the past 15 years he has had the opportunity to explore a wide range of its uses with an emphasis on CADD/CAM. He has been teaching SolidWorks at the secondary, post-secondary, and industry levels for the past 8 years. Many of the custom industry trainings are a mix of both CAD and CAM ... more
